                                                                        Introduction

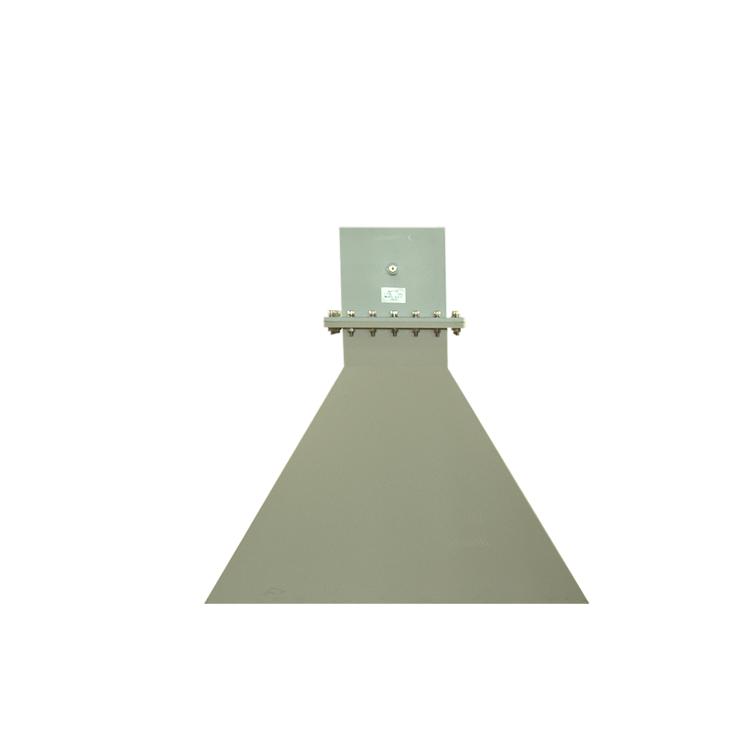

Standard gain horn antenna OLB-770-15 WR-770 is also known as a waveguide horn.
This WR-770 standard gain horn antenna has a 15 dB nominal gain and a square cover flange. Our 15 dB WR-770 horn antenna has a minimum frequency of 0.96 GHz and a maximum frequency of 1.45 GHz.

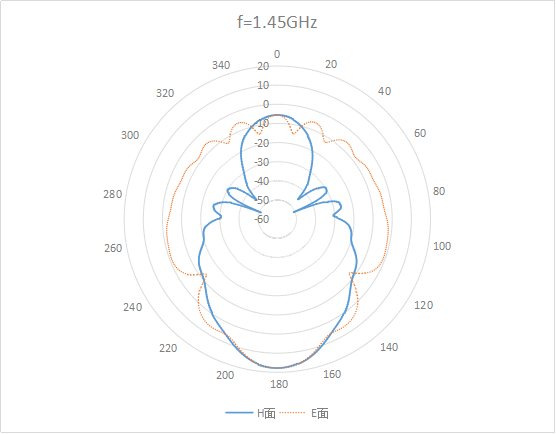

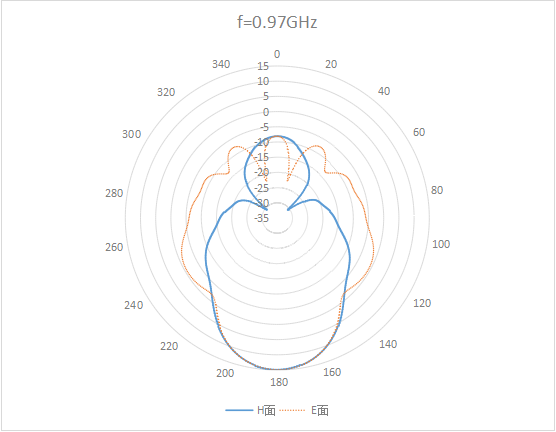

Standard gain horn waveguide antenna OLB-770-15 has a vertical beam width of 31.3 and horizontal of 32.1degrees at 3 dB.

                                                                        Features
Precisely Machined and Gold Plated

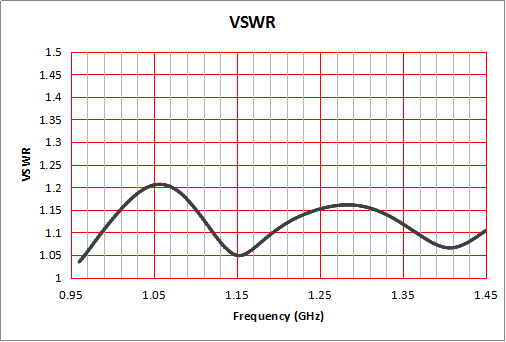

Low VSWR
Light Weight
Linear Polarization
Low Return Loss
Rectangular Waveguide Interface
Lower sidelobes and symmeterical radiation patterns

                                                                        Applications

Civil Aviation
Railway
Transportation
Automobile manufacture
Navigation
Experimental Study
Measurement
Safe City Applications

                                                                        Specifications

Frequency Range(GHz)

0.96-1.45

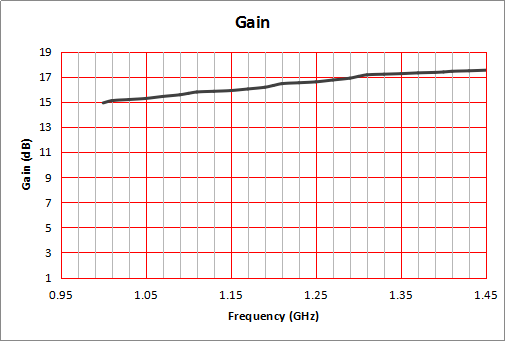

Gain(dB)

15Typ.

3dB Beam Width

H 30° / V 30°

Waveguide

WR770

Material

AI

Polarization

Linear

Impedance

50Ω
