OLB-75-20

                                                                        Introduction

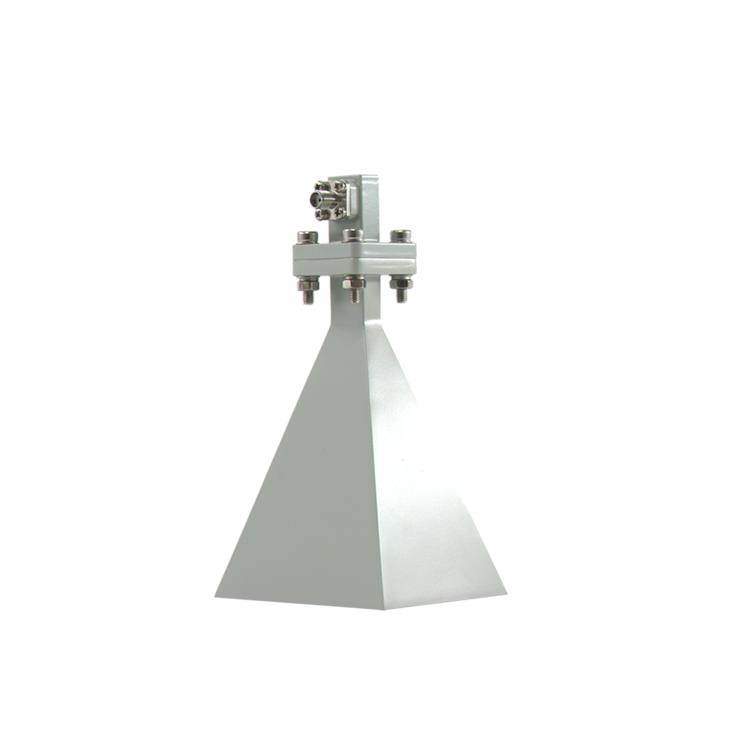

Standard gain horn antennaOLB-75-20 WR-75is  also  known as  a waveguide horn.

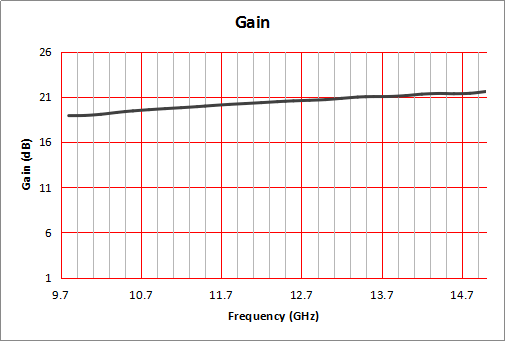

This WR-75 standard gain horn antenna has a20dB nominal gain and a square cover flange.Our20dB WR-75 horn antenna has a minimum frequency of 10.0GHz and a maximum frequency of15.0GHz.

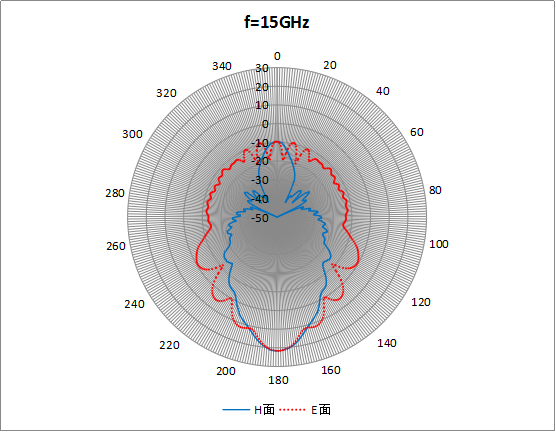

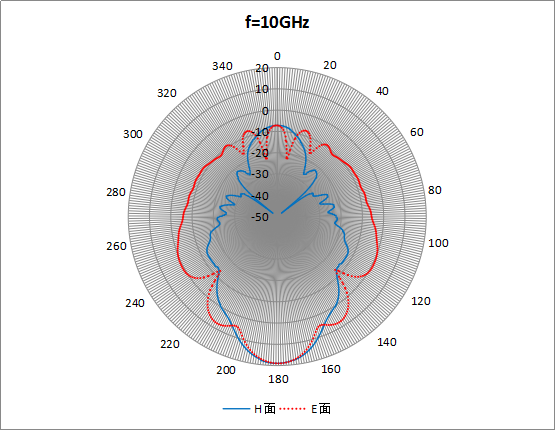

Standard gain horn waveguide antennaOLB-75-20has a vertical beam width of18.3and horizontal of16.7degrees at 3 dB

Ku band is primarily used for satellite communications, most notably for fixed and broadcast services, and for specific applications such as NASA's Tracking Data Relay Satellite used for both space shuttle and International Space Station (ISS) communications. Ku band satellites are also used for backhauls and particularly for satellite from remote locations back to a television network's studio for editing and broadcasting. The band is split by the International Telecommunication Union (ITU) into multiple segments that vary by geographical region. NBC was the first television network to uplink a majority of its affiliate feeds via Ku band in 1983.
Some frequencies in this radio band are employed in radar guns used by law enforcement to detect vehicles speeding, especially in Europe.

                                                                        Features
Precisely Machined and Gold Plated

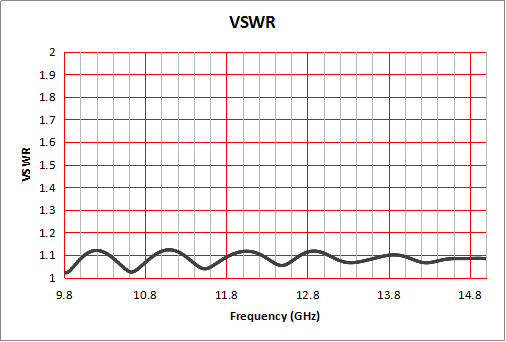

Low VSWR
Light Weight
Linear Polarization
Low Return Loss
Rectangular Waveguide Interface
Lower sidelobes and symmeterical radiation patterns

                                                                        Applications

Civil Aviation
Railway
Transportation
Automobile manufacture
Navigation
Experimental Study
Measurement
Safe City Applications

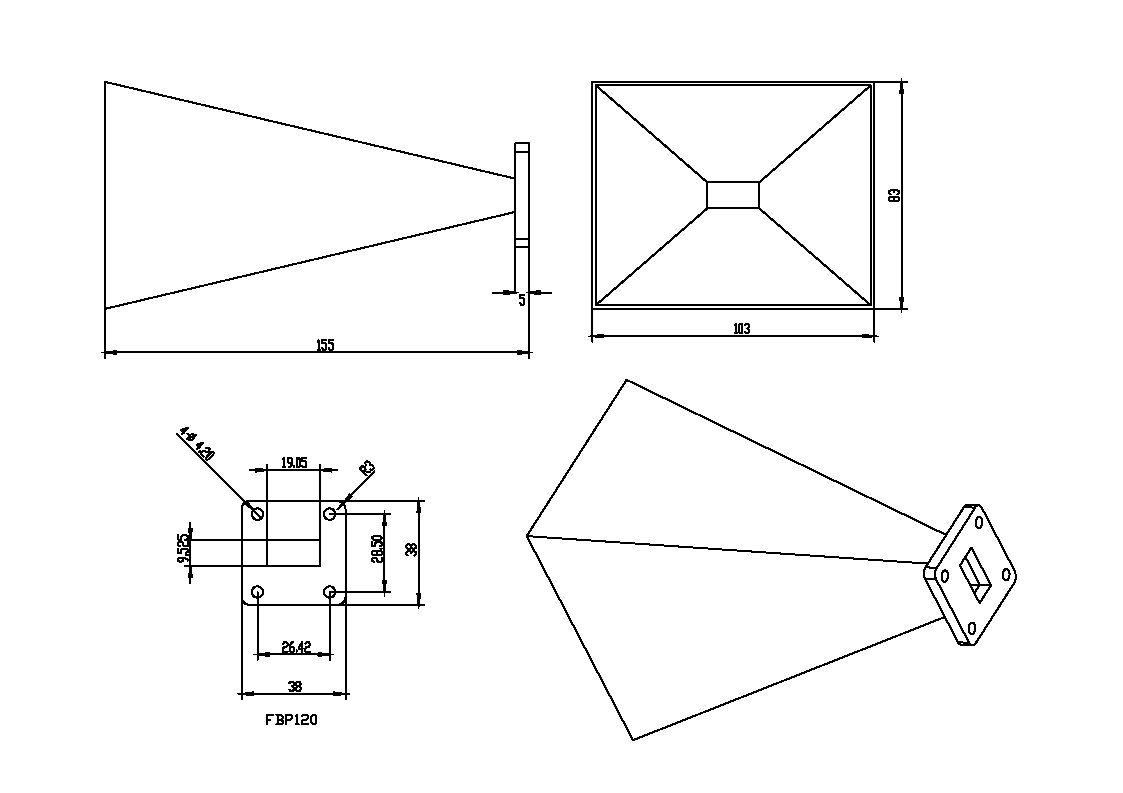

                                                                        Specifications

OLB-75-20
