OLB-112-15

                                                                        Introduction

Standard gain horn antenna OLB-112-15 WR-112 is also known as a waveguide horn.
This WR-112 standard gain horn antenna has a 15 dB nominal gain and a square cover flange. Our 15 dB WR-112 horn antenna has a minimum frequency of 7.05 GHz and a maximum frequency of 10 GHz.

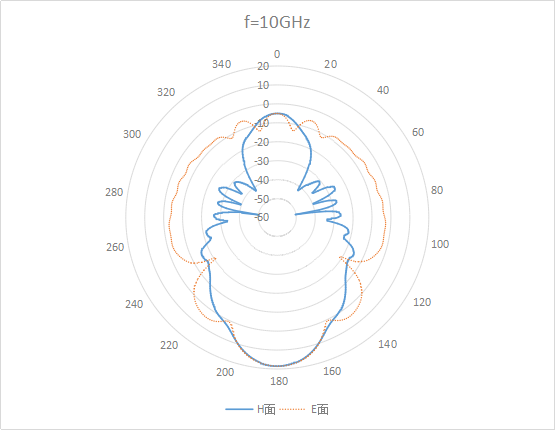

Standard gain horn waveguide antenna OLB-112-15 has a vertical beam width of 54.4 and horizontal of 54.2 degrees at 3 dB.

The X band is the designation for a band of frequencies in the microwave radio region of the electromagnetic spectrum. In some cases, such as in communication engineering, the frequency range of the X band is rather indefinitely set at approximately 7.0 to 11.2 GHz[citation needed]. In radar engineering, the frequency range is specified by the IEEE at 8.0 to 12.0 GHz. The X band is used for radar, satellite communication, and wireless computer networks.

                                                                        Features
Precisely Machined and Gold Plated
Low VSWR
Light Weight
Linear Polarization
Low Return Loss
Rectangular Waveguide Interface
Lower sidelobes and symmeterical radiation patterns

                                                                        Applications

Civil Aviation
Railway
Transportation
Automobile manufacture
Navigation
Experimental Study
Measurement
Safe City Applications

                                                                        Specifications

OLB-112-15
