OLB-284-15

                                                                        Introduction

Standard gain horn antenna OLB-284-15 WR-284 is also known as a waveguide horn.

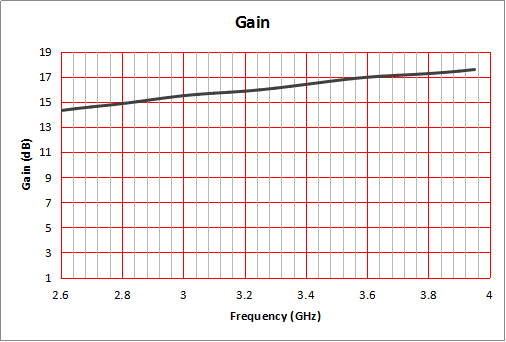

This WR-284 standard gain horn antenna has a 15 dB nominal gain and a square cover flange. Our 15 dB WR-284 horn antenna has a minimum frequency of 2.60 GHz and a maximum frequency of 3.95 GHz.
Standard gain horn waveguide antenna OLB-284-15 has a vertical beam width of 31.3 and horizontal of 32.1degrees at 3 dB.

The S band is a designation by the Institute of Electrical and Electronics Engineers (IEEE) for a part of the microwave band of the electromagnetic spectrum covering frequencies from 2 to 4 gigahertz (GHz). Thus it crosses the conventional boundary between the UHF and SHF bands at 3.0 GHz. The S band is used by weather radar, surface ship radar, and some communications satellites, especially those used by NASA to communicate with the Space Shuttle and the International Space Station. The 10 cm radar short-band ranges roughly from 1.55 to 5.2 GHz. The S band also contains the 2.4–2.483 GHz ISM band, widely used for low power unlicensed microwave devices such as cordless phones, wireless headphones (Bluetooth), wireless networking (WiFi), garage door openers, keyless vehicle locks, baby monitors as well as for medical diathermy machines and microwave ovens (typically at 2.495GHz).

Wireless network equipment compatible with IEEE 802.11b and 802.11g standards use the 2.4 GHz section of the S band. Some digital cordless telephones operate in this band too. Microwave ovens operate at 2495 or 2450 MHz. IEEE 802.16a and 802.16e standards utilize a part of the frequency range of S band; under WiMAX standards most vendors are now manufacturing equipment in the range of 3.5 GHz. The exact frequency range allocated for this type of use varies between countries.

In North America, 2.4–2.483 GHz is an ISM band used for unlicensed spectrum devices such as cordless phones, wireless headphones, and video senders, among other consumer electronics uses, including Bluetooth which operates between 2.402 GHz and 2.480 GHz.
Amateur radio and amateur satellite operators have two S-band allocations, 13 cm (2.4 GHz) and 9 cm (3.4 GHz). Amateur television repeaters also operate in these bands.

                                                                        Features
Precisely Machined and Gold Plated
Low VSWR
Light Weight
Linear Polarization
Low Return Loss
Rectangular Waveguide Interface
Lower sidelobes and symmeterical radiation patterns

                                                                        Applications

Civil Aviation
Railway
Transportation
Automobile manufacture
Navigation
Experimental Study
Measurement
Safe City Applications

                                                                        Specifications

OLB-284-15

FAQ

1. When can we get the reply?
Any inquiries will be replied within 24 hours. Our sales team will try our best to support you.
2. What about minimum order quantity?
We have no limit for MOQ,so you can even buy only 1 piece.Welcome to buy sample to test first.

3. How will you control product quality?
We strictly control every detail of production, and every product is inspected by our QC team before delivery. Moreover,our production is abided by ISO9000,CE .

4.What about delivery time?
Sample, we will send to you within 3 days after payment received. Production for big quantity needs 7 to 15 days. And it also depends on product and quantity.If wants to know the exact time. Email us the quantity; we will check the time for you

5. What about terms of payment?
Payment terms: T/T, west Union PayPal and L/C etc.
