OLB-34-25

                                                                        Introduction

Standard gain horn antennaOLB-34-25WR-34is  also  known as  a waveguidehorn.
This WR-34standard gain horn antenna has a25dB nominal gain and a square cover flange.Our25dB WR-34horn antenna has a minimum frequency of 22.0GHz and a maximum frequency of33.0GHz.

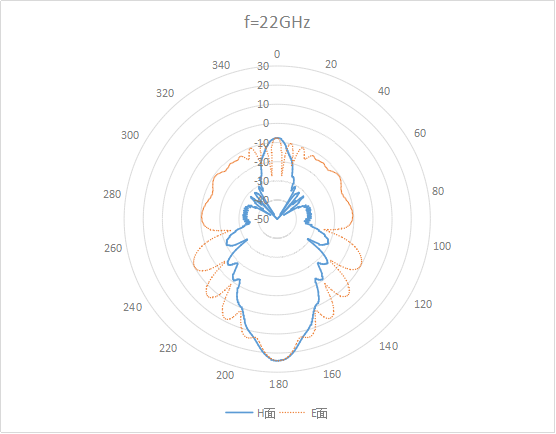

Standard gain horn waveguide antennaOLB-34-25has a vertical beam width of10.2and horizontal of10.5degrees at 3 dB

                                                                        Features
Precisely Machined and Gold Plated
Low VSWR
Light Weight
Linear Polarization
Low Return Loss
Rectangular Waveguide Interface
Lower sidelobes and symmeterical radiation patterns

                                                                        Applications

Civil Aviation
Railway
Transportation
Automobile manufacture
Navigation
Experimental Study
Measurement
Safe City Applications

                                                                        Specifications

OLB-34-25

FAQ

1.What about delivery time?
Sample, we will send to you within 3 days after payment received. Production for big quantity needs 7 to 15 days. And it also depends on product and quantity.If wants to know the exact time. Email us the quantity; we will check the time for you

2. What about terms of payment?
Payment terms: T/T, west Union PayPal and L/C etc.

3. How do I know that you have sent the products out?
Once the products are sent out,a tracking number will be provided so that you can check where your goods at all times

4.How you will send the goods to us?
We will send the goods to you by DHL, FEDEX, UPS, EMS, AIR etc.

5.what is the interface of the antenna
There are two kinds of interfaces of  SGH antennas : standard wave guide interface.Coaxial interface .
