OLB-28-25

                                                                        Introduction

Standard gain horn antennaOLB-28-25 WR-28 is also known as awaveguide horn.

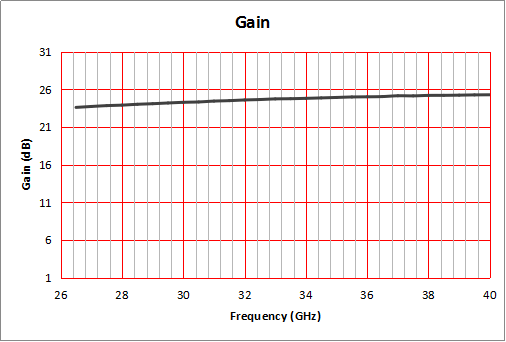

This WR-28standard gain horn antenna has a25dB nominal gain and a squarecover flange.Our25dB WR-28horn antenna has a minimum frequency of 26.5GHz and a maximum frequency of40.0GHz.
Standard gain horn waveguide antennaOLB-28-25has a vertical beam widthof10.2and horizontal of10.5degrees at 3 dB

The Ka band ("kay-ay band") is a portion of the microwave part of the electromagnetic spectrum defined as frequencies in the range 26.5–40 gigahertz (GHz),i.e. wavelengths from slightly over one centimeter down to 7.5 millimeters. The band is called Ka, short for "K-above" because it is the upper part of the original NATO K band, which was split into three bands because of the presence of the atmospheric water vapor resonance peak at 22.24 GHz, (1.35 cm) which made the center unusable for long range transmission.

In satellite communications, the K band allows higher bandwidth communication. It is used in the Inmarsat I-5 system[6] and will be used in the Iridium Next satellite series, as well as the James Webb Space Telescope. The Ka band is more susceptible to rain attenuation than is the Ku band, which in turn is more susceptible than the C band.

                                                                        Features
Precisely Machined and Gold Plated
Low VSWR
Light Weight
Linear Polarization
Low Return Loss
Rectangular Waveguide Interface
Lower sidelobes and symmeterical radiation patterns

                                                                        Applications

Civil Aviation
Railway
Transportation
Automobile manufacture
Navigation
Experimental Study
Measurement
Safe City Applications

                                                                        Specifications

OLB-28-25

FAQ

1. When can we get the reply?
Any inquiries will be replied within 24 hours. Our sales team will try our best to support you.
2. What about minimum order quantity?
We have no limit for MOQ,so you can even buy only 1 piece.Welcome to buy sample to test first.

3. How will you control product quality?
We strictly control every detail of production, and every product is inspected by our QC team before delivery. Moreover,our production is abided by ISO9000,CE .

4.What about delivery time?
Sample, we will send to you within 3 days after payment received. Production for big quantity needs 7 to 15 days. And it also depends on product and quantity.If wants to know the exact time. Email us the quantity; we will check the time for you

5. What about terms of payment?
Payment terms: T/T, west Union PayPal and L/C etc.
