OBH Series Broadband Horn Antenna
400MHz to 6GHz broadband horn antenna
4 antennas cover from 400MHz to 40GHz
|
OBH460 double ridge horn antennas operate broadband from 400MHz to 6GHz. The antenna supports linear polarized waveforms. This antenna is appropriate to the test of wireless and telecom communication antennas. High gain and low VSWR permit the measurement of weak signals and the generation of high field strengths without any significant return loss. OBH460 is calibrated individually in line with ANSI C63.5-2006, making the antennas ideal for EMC/RF measurements.
OBH460’s radiation pattern contains only one single main lobe over the entire frequency range without any other side lobes. |
Features Applications |
|
|
Type of Antenna |
Dual-Ridge Horn |
|
|
Frequency Range(GHz) |
0.4-6.0 |
|
|
Gain(dB) |
6-15dB |
|
|
VSWR |
<2.0Max |
|
|
Polarization |
Single Linear |
|
|
Impedance |
50Ω |
|
Gain:
AF:

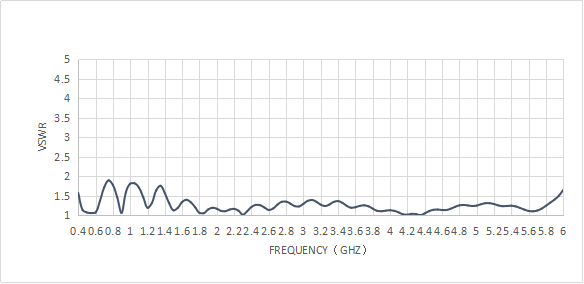

VSWR:
FAQ
1.What kind of interface do I need ?
We recommend coaxial interface if the SGH frequency below 50GHz. If the frequency up to 60GHz , we highly recommend use waveguide interface.
2.What kind of coaxial interface do you have?
There are kinds of coaxial interfaces ,they are divided by the difference of the frequency.
DC – 18GHz usually we use SMA or Nconnector.
DC-26.5GHz usually we use SMA or 3.5mmconnector.
DC-40GHz usually we use 2.92mm or 2.4mmconnector.
DC-50GHz usually we use 2.4mm or 1.85mmconnector.
DC-67GHz usually we use 1.85mm or 1mmconnector.
UP to 67GHz usually we use 1mm connector.
3.What is the price difference between the antenna with waveguide to coaxial connector or without the waveguide to coaxialconnector.
There are two kinds of price about the antenna with waveguide to coaxial connector or without the waveguide to coaxialconnector. We will give you two kinds of prices.
4.What is the naming convention for standard gain horn antennas?
The horn antenna is named after the waveguide international standard type and the horn antenna gain, for example: OLB-42-10 Among them, 42 represents the WR-42 standard waveguide, 10 represents the horn antenna gain is 10dB.
5.What is the highest frequency of standard gain horn antenna?
At present all the standard horn antenna maximum frequency to 220GHz
