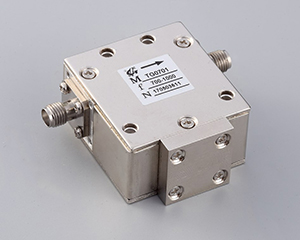

TG0701

                                                                        Features

Low insertion loss,
High isolator
High power.

                                                                        Applications

Applied to civil,
Military,
Aerospace,
Space technology.

                                                                        Specifications

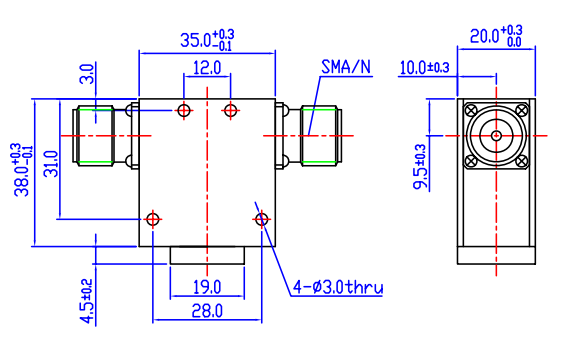

TG0701

FAQ
1. How do I know that you have sent the products out?
Once the products are sent out,a tracking number will be provided so that you can check where your goods at all times

2.How you will send the goods to us?
We will send the goods to you by DHL, FEDEX, UPS, EMS, AIR etc.

3.what is the interface of the antenna
There are two kinds of interfaces of  SGH antennas : standard wave guide interface.Coaxial interface .

4.What kind of interface do I need ?
We recommend coaxial interface if the SGH frequency below 50GHz. If the frequency up to 60GHz , we highly recommend use waveguide interface.

5.What kind of coaxial interface do you have?
There are kinds of coaxial interfaces ,they are divided by the difference of the frequency.
DC – 18GHz usually we use SMA or Nconnector.
DC-26.5GHz usually we use SMA or 3.5mmconnector.
DC-40GHz usually we use 2.92mm or 2.4mmconnector.
DC-50GHz usually we use 2.4mm or 1.85mmconnector.
DC-67GHz usually we use 1.85mm or 1mmconnector.
UP to 67GHz usually we use 1mm connector.
