BMBP28/8-8DA
$49 /Piece
BMBP22/1-6PA
$49 /Piece
BMBP39R5/3-6PA
$49 /Piece
BMBP38R6/3R4-6PA
$49 /Piece
BMBP38R1/9R9-6PA
$49 /Piece
BMBP34R5/3R4-6PA
$49 /Piece
BMBP33R5/3R4-6PA
$49 /Piece
BMBP30R75/1R3-6PA
$49 /Piece
BMBP30R7/3R8-6PA
$49 /Piece
BMBP30R5/4-6PA
$49 /Piece
Shipping to:
Total:
The total price will depend on the final product features you select

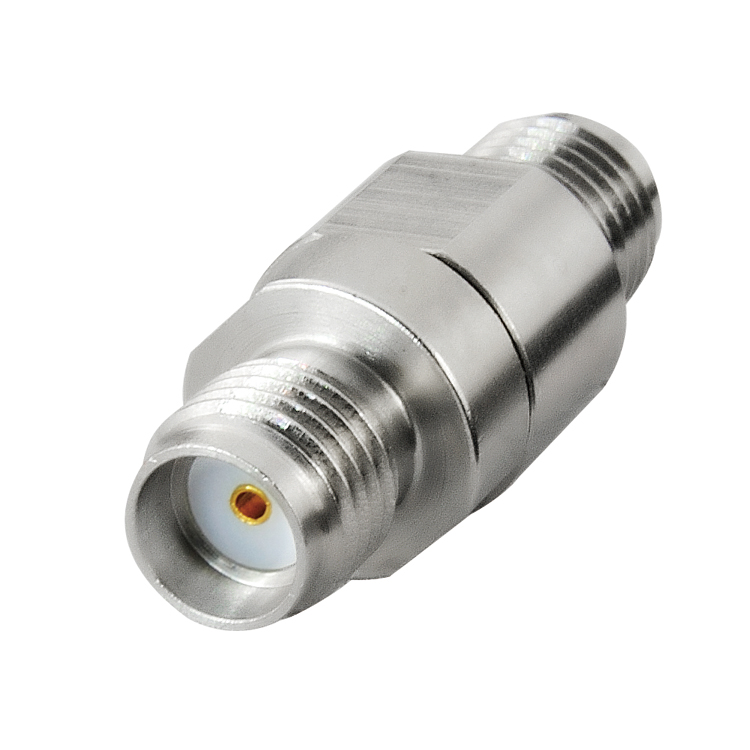

Port Adaptor
stable, repeatable
Precise, 67GHz
|
Test port connector is a ruggedized test port connector used for stable connection to VNA or any style test port. These adapters can provide connection between or adapt to cable assemblies and devices. The adapter provides precise calibration port to ensure the original accuracy of the analyzer. The rugged construction makes the connection very stable, repeatable and protects the test port of the instrument Frequency up to 67GHz. |
Features |
|
|
P/N |
SMA(f) to SMA(f) |
|
|
Body Materials |
stainless steel, passivated |
|
|
Center Conductor Materials |
Ag-plated Beryllium Copper |
|
|
Storage Temperature |
-60℃~+165℃ |
|
|
Operating Temperature |
-55℃~+125℃ |
|
|
Mating cycles |
500 Cycles |
|
|
Frequency Range |
DC~27GHz |
|
|
VSWR |
1.15:1（Max） |
|
|
Insulation resistance |
≥5000MΩ |
|
|
Withstanding Voltage |
1000V |
|
|
(MIL-G-45204) |
||
